Partner| Height | 22-53 mm |
|---|---|
| Load capacity | 8,0 kN |
| Material | PP-C |
Products / PROFI-LINE decking pedestals
· Eurotec

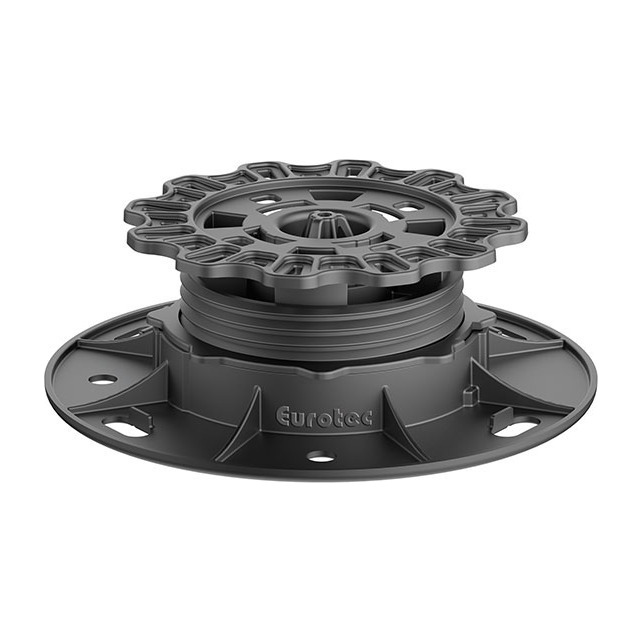

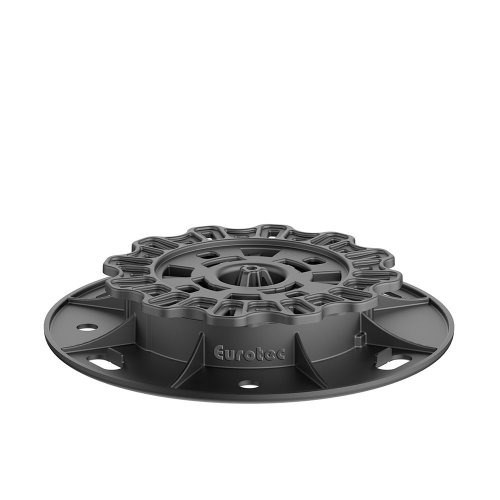

PRO adjustable pedestal XS / PRO S
26,42 zł - 26,85 zł incl. VAT
plus shipping costs
Shipping to the EU: 109,47 zł
Not sure which size? Call us: +48 22 266 21 23
In stock · ships in 24 h
Total
- Height
- 22-30 mm · 30-53 mm
- Load capacity
- 8,0 kN
- Packaging
- 1 pcs
Key specs
Article numbers and dimensions
Ordering by number? Below is the full list with the Eurotec article number and EAN.
| Art. no. | Size | Pack | EAN |
|---|---|---|---|
| 946070 | PRO S, 30-53 mm | 1 pcs | 4251314707062 |
| 954061 | PRO XS, 22-30 mm | 1 pcs | 4250207480983 |
All data sheets: Adjustable decking pedestals
The PRO adjustable pedestals are suitable for timber decks and stone patios with various assembly heights.
The Profi-Line series of adjustable pedestals from Eurotec provides you with a modular system: innovative, universal, versatile and user-friendly!
The series comprises six adjustable pedestals of different heights. Their assembly heights can be altered with extension rings or extension plates.
The adjustable pedestal is completed by three different types of adapter:
L adapter - for classic timber substructures or modern aluminium substructures
Click adapter - for clicking Eurotec aluminium profiles into place in a time-saving manner
Stone adapter - for laying stone slabs
Thus, the adjustable pedestal PRO can be quickly and easily adapted to your individual needs and circumstances on site.
Properties/advantages:
High load-bearing capacity of 8.0 kN/pedestal
Height can be increased with extension ring or extension plate
Quick and easy assembly
Stepless height adjustment
Resistant to weather, exposure to UV, insects and rot
* The specified value of the load capacity represents recommended values. Under these loads, the adjustable feet deform by only approx. 2 mm. The load-bearing capacity up to the actual breakage is many times higher
Article numbers and EAN codes for every size are listed in the table below.
Stock items dispatched from Poland within 24 h, items on order: 5-7 working days. VAT invoice with every order. Delivery after dispatch: 1-2 working days within Poland, 3-7 working days to other EU countries.
Manufacturer
E.u.r.o.Tec GmbH
Unter dem Hofe 5
58099 Hagen, Germany
[email protected] · eurotec.team
Product identification
Product name, article number and EAN - in the number table on this page. The batch number is on the packaging.
Safety information
- Use the product as intended and in line with the manufacturer's documentation (product data sheet, installation guide, European Technical Assessment - where applicable). The documents can be downloaded on this page.
- Load-bearing connections must be designed and checked by a qualified person. Do not exceed the values given in the documentation.
- Parts may have sharp tips and edges - wear gloves and safety glasses during installation.
- Store in a dry place, out of the reach of children.
